Tutorial 3: Uncovering Temporal Dynamics in Neural Data

Welcome to the definitive guide on uncovering temporal relationships in your data. In neuroscience, two fundamental questions often arise:

  1. What is the temporal offset? Does a pattern in signal X predict a pattern in signal Y with a specific time delay (``lag``)?

  2. What is the timescale of the interaction? Over how long a period do I need to observe signal X to best predict signal Y (``window_size``)?

This tutorial will teach you how to answer both of these questions robustly from an agnostic perspective. We’ll build a narrative from the ground up, starting with familiar concepts and progressing to the powerful, nonlinear methods that this library unlocks.

First, let’s import the necessary libraries and configure our basic parameters for the MI estimation alongside of some useful plotting functions.

[1]:

import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
import pandas as pd
from tqdm.auto import tqdm
import neural_mi as nmi
from neural_mi.datasets.generators import generate_linear_data, generate_nonlinear_data, generate_history_data, generate_full_data
from neural_mi.visualize.plot import plot_cross_correlation, analyze_mi_heatmap

[2]:

# Base parameters for our MI estimator. We'll use a simple MLP.
BASE_PARAMS = {
    'embedding_dim': 16,
    'hidden_dim': 32,
    'n_layers': 2,
    'learning_rate': 1e-3,
    'batch_size': 128,
    'n_epochs': 30,
    'patience': 15,
}

# Plotting function for X and Y
def plot_data(x, y, title=None, xlim=100):
    fig, ax = plt.subplots(figsize=(8, 4))
    ax.plot(x.T, label=r'$x(t)$')
    ax.plot(y.T, label=r'$y(t)$')
    ax.set_xlabel('Timepoints')
    ax.set_ylabel('Value')
    if title:
        ax.set_title(title)
    ax.set_xlim(0, xlim)
    ax.legend()
    plt.show()

1. The Simplest Case - Finding a Linear Lag

Let’s start with a problem that many are familiar with: finding a simple, time-delayed linear relationship. We’ll generate two signals, where Y is just a lagged and noisy version of X.

[3]:

TRUE_LAG_LINEAR = 50
x_linear, y_linear = generate_linear_data(true_lag=TRUE_LAG_LINEAR)
plot_data(x_linear,y_linear, 'Linear Data')

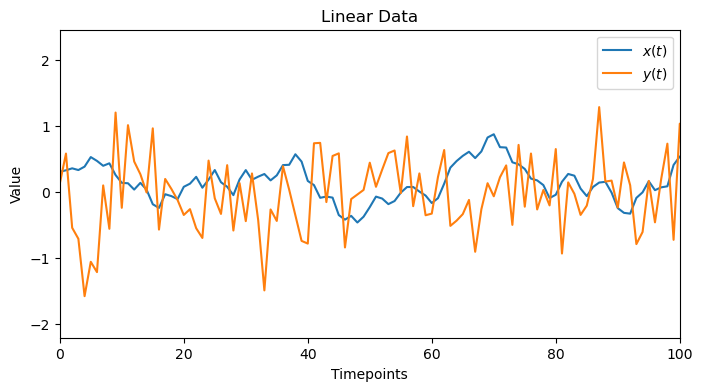

../_images/tutorials_03_Finding_Temporal_Relationships_5_0.png

1.1. Linear Sanity Check: Cross-Correlation

The classic tool for this is cross-correlation. It slides one time series past the other and calculates the linear correlation at each step. As expected, it works perfectly, showing a clear peak at the true lag.

[4]:

plot_cross_correlation(x_linear, y_linear, TRUE_LAG_LINEAR)
../_images/tutorials_03_Finding_Temporal_Relationships_7_0.png

1.2. MI Application

Now, let’s apply our MI library. Since there’s no history component, window_size is just 1. The MI analysis also correctly identifies the lag.

[5]:

results_linear_lag = nmi.run(
    x_data=x_linear,
    y_data=y_linear,
    mode='lag',
    processor_type='continuous',
    processor_params={'window_size': 1},
    base_params=BASE_PARAMS,
    lag_range=range(0, 101, 5),
    n_workers=4,
)

ax = results_linear_lag.plot(show=False)
ax.axvline(TRUE_LAG_LINEAR, color='r', linestyle='--', label=f'True Lag ({TRUE_LAG_LINEAR})')
ax.legend()
plt.show()

2025-10-19 23:55:34 - neural_mi - WARNING - `processor_type` is deprecated. Use `processor_type_x` and `processor_type_y` instead.
2025-10-19 23:55:34 - neural_mi - WARNING - `processor_params` is deprecated. Use `processor_params_x` and `processor_params_y` instead.
2025-10-19 23:55:34 - neural_mi - INFO - Detected sweep over processor or lag parameters. Deferring data processing to workers.
2025-10-19 23:55:34 - neural_mi - INFO - Preparing 21 tasks for lag analysis.
2025-10-19 23:55:34 - neural_mi - INFO - Starting parameter sweep with 4 workers...

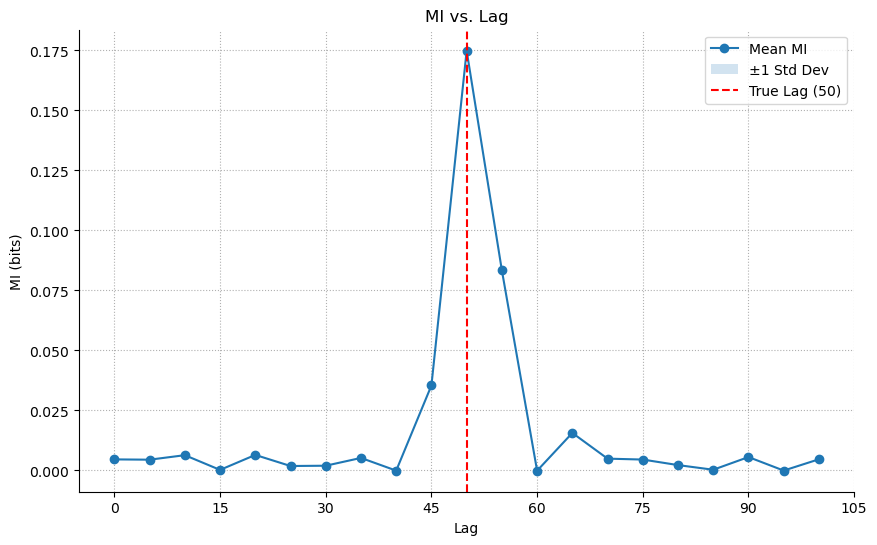

../_images/tutorials_03_Finding_Temporal_Relationships_9_3.png

Lesson: For simple linear, time-delayed relationships, both methods work. MI is a valid, more general tool.

2. Adding Complexity - Finding a Nonlinear Lag

Now, let’s create a dataset where the relationship is nonlinear. For instance, Y(t) could be a function of X(t - lag)^2. This will demonstrate the limits of linear methods.

[6]:

TRUE_LAG_NONLINEAR = 50
x_nonlinear, y_nonlinear = generate_nonlinear_data(true_lag=TRUE_LAG_NONLINEAR)
plot_data(x_nonlinear,y_nonlinear, 'Non-Linear Data')

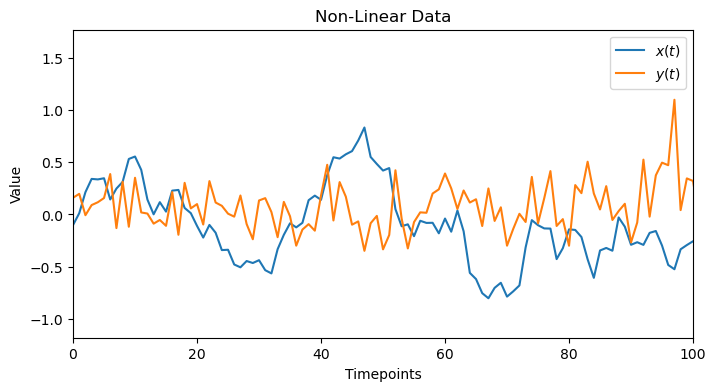

../_images/tutorials_03_Finding_Temporal_Relationships_12_0.png

2.1. Linear Sanity Check: Failure!

When we apply cross-correlation to this data, it fails completely. The plot shows no clear peak, as the linear method is blind to the X^2 relationship.

[7]:

plot_cross_correlation(x_nonlinear, y_nonlinear, TRUE_LAG_NONLINEAR)

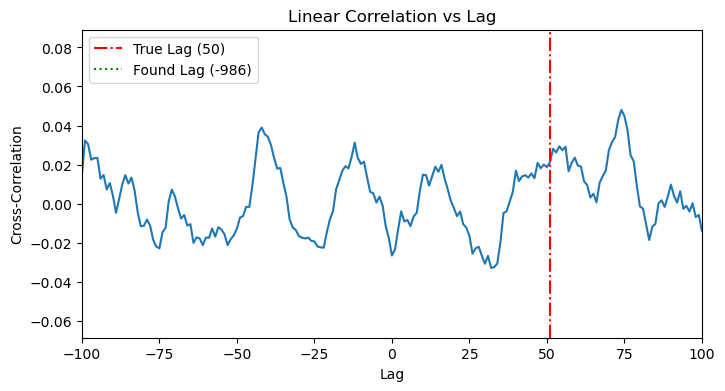

../_images/tutorials_03_Finding_Temporal_Relationships_14_0.png

2.2. MI Application: Success!

Our MI tool, however, is not limited by linearity. It correctly identifies the lag by capturing the underlying statistical dependency, whatever its form.

[8]:

results_nonlinear_lag = nmi.run(
    x_data=x_nonlinear,
    y_data=y_nonlinear,
    mode='lag',
    processor_type='continuous',
    processor_params={'window_size': 1},
    base_params=BASE_PARAMS,
    lag_range=range(0, 101, 5),
    n_workers=4,
)

ax = results_nonlinear_lag.plot(show=False)
ax.axvline(TRUE_LAG_NONLINEAR, color='r', linestyle='--', label=f'True Lag ({TRUE_LAG_NONLINEAR})')
ax.legend()
plt.show()

2025-10-19 23:56:00 - neural_mi - WARNING - `processor_type` is deprecated. Use `processor_type_x` and `processor_type_y` instead.
2025-10-19 23:56:00 - neural_mi - WARNING - `processor_params` is deprecated. Use `processor_params_x` and `processor_params_y` instead.
2025-10-19 23:56:00 - neural_mi - INFO - Detected sweep over processor or lag parameters. Deferring data processing to workers.
2025-10-19 23:56:00 - neural_mi - INFO - Preparing 21 tasks for lag analysis.
2025-10-19 23:56:00 - neural_mi - INFO - Starting parameter sweep with 4 workers...

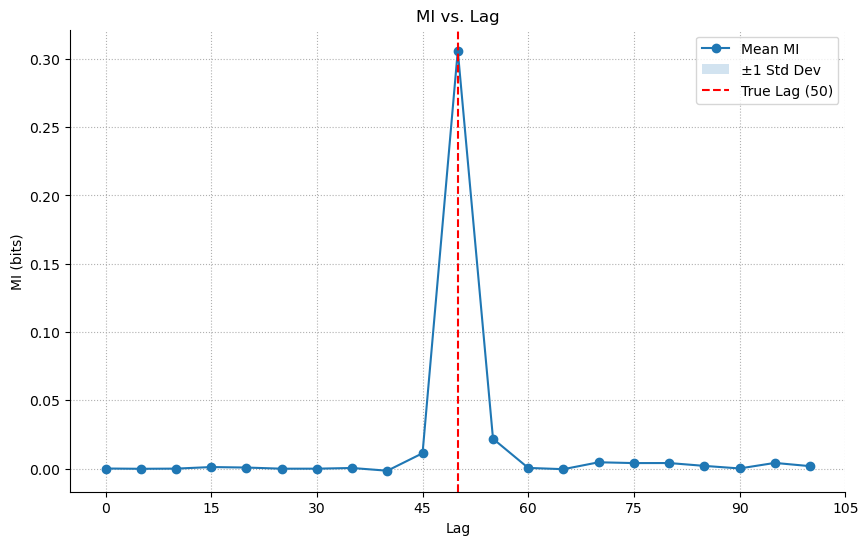

../_images/tutorials_03_Finding_Temporal_Relationships_16_3.png

Lesson: Mutual Information is essential for uncovering nonlinear relationships that linear methods miss entirely.

3. A New Dimension - Finding a Nonlinear History

Now we introduce the second fundamental question: “For how long?” We’ll create data where Y(t) depends on the history of X over a recent window. To isolate this effect, we will set the true lag to zero.

[9]:

HISTORY_DURATION = 20
x_history, y_history = generate_history_data(history_duration=HISTORY_DURATION)
plot_data(x_history, y_history, 'Non-Linear with History', 300)

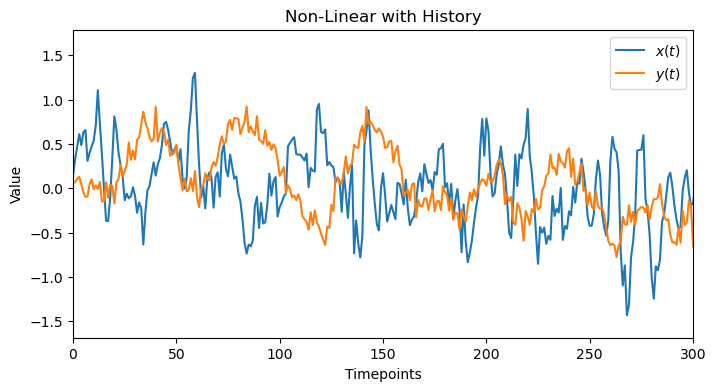

../_images/tutorials_03_Finding_Temporal_Relationships_19_0.png

3.1. Linear Check

A linear method would fail here because of the nonlinear tanh function. It can show the beginning of the history but then saturates and decays, probably becayse of the linearity portion of tanh. However, this is not enough to detect the correct window_size.

[10]:

plot_cross_correlation(x_history, y_history, HISTORY_DURATION)

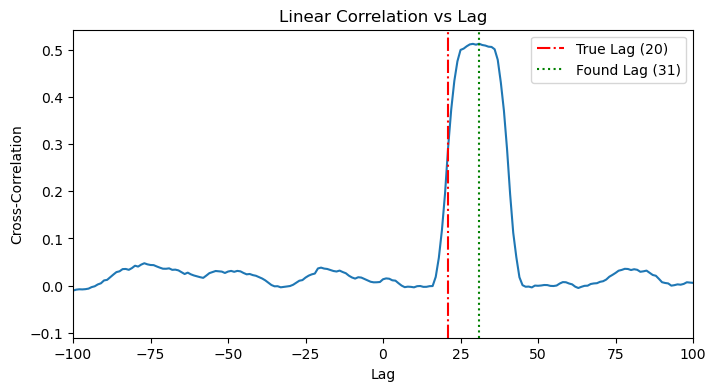

../_images/tutorials_03_Finding_Temporal_Relationships_21_0.png

3.2. MI Application: Sweeping Window Size

We use mode='sweep' to test different values for window_size. As long as the window size is not enough to capture the history, we will get MI~0, once we pass the critical window_size that corresponds to the ture history of the data, MI>0 and will keep increasing as bigger window_size can span multiple histories. The resulting plot clearly shows the MI as zero and then starting to increase right around the true history_duration.

[11]:

window_sweep_grid = {'window_size': range(5, 51, 5)}

results_history = nmi.run(
    x_data=x_history,
    y_data=y_history,
    mode='sweep',
    processor_type='continuous',
    processor_params={},
    base_params=BASE_PARAMS,
    sweep_grid=window_sweep_grid,
    n_workers=4,
)

2025-10-19 23:56:27 - neural_mi - WARNING - `processor_type` is deprecated. Use `processor_type_x` and `processor_type_y` instead.
2025-10-19 23:56:27 - neural_mi - WARNING - `processor_params` is deprecated. Use `processor_params_x` and `processor_params_y` instead.
2025-10-19 23:56:27 - neural_mi - INFO - Detected sweep over processor or lag parameters. Deferring data processing to workers.
2025-10-19 23:56:27 - neural_mi - INFO - Starting parameter sweep with 4 workers...

Run b234b835-b550-4835-b045-83ca09664749_c9 | MI: 5.190:  97%|█████████▋| 29/30 [00:05<00:00,  5.18it/s]

2025-10-19 23:56:44 - neural_mi - INFO - Parameter sweep finished.



[12]:

ax = results_history.plot(show=False)
ax.axvline(HISTORY_DURATION, color='r', linestyle='--', label=f'True Duration ({HISTORY_DURATION})')
ax.set_xlabel('Window Size (Timepoints)')
ax.legend()
plt.show()

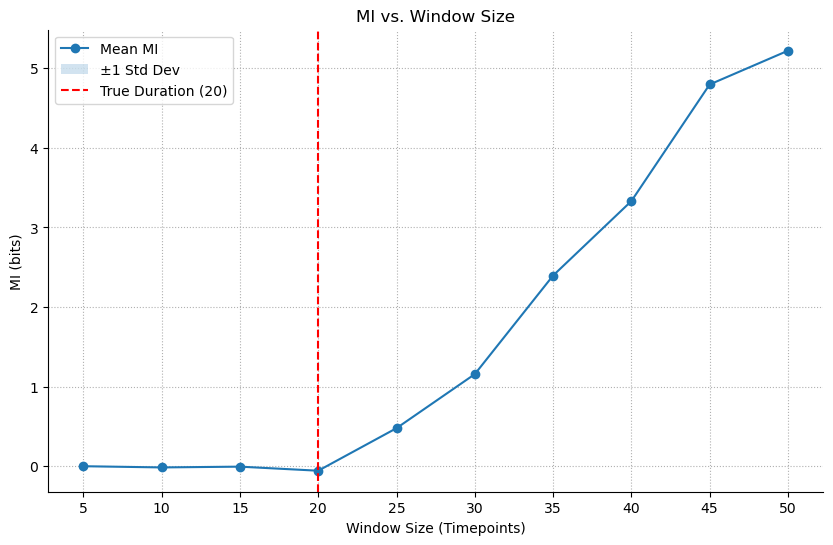

../_images/tutorials_03_Finding_Temporal_Relationships_24_0.png

Lesson: MI can determine the optimal timescale or integration window of a neural interaction, a task that has no simple linear equivalent.

4. The Full Picture - Agnostic Search for Lag & History

Now we combine both problems and try to solve. As we will see, when we have a combination of lag+history, we can’t really disentangle them from one another –unless one of them is very large or small compared to the other one–. However, we will show how we can use our toolbox to get to the correct region and have some good herustics to infer the correct values. Our data will have both a lag and a history component from 2 and 3.

[13]:

TRUE_LAG_FULL = 30
HISTORY_DURATION_FULL = 20
x_full, y_full = generate_full_data(true_lag=TRUE_LAG_FULL, history_duration=HISTORY_DURATION_FULL)
plot_data(x_full, y_full, 'Non-Linear Lag + History', 200)

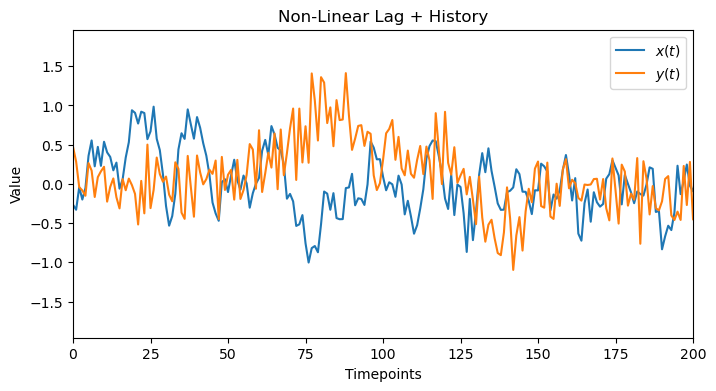

../_images/tutorials_03_Finding_Temporal_Relationships_27_0.png

4.1. Linear Check

Along the same lines of 3.1, we see a more noisy cross correlation plot, where we see a peak around the effective time (lag+history). Again, it’s not easy to detect/disentangle. We can see that the detected lag doesn’t align with any of lag or history.

[14]:

plot_cross_correlation(x_full, y_full, TRUE_LAG_FULL)
plot_cross_correlation(x_full, y_full, HISTORY_DURATION_FULL)

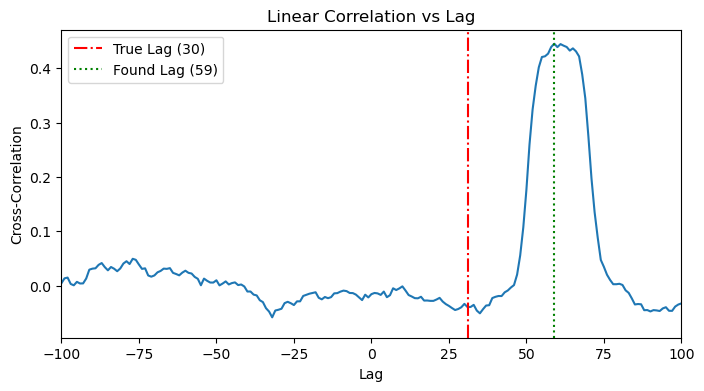

../_images/tutorials_03_Finding_Temporal_Relationships_29_0.png

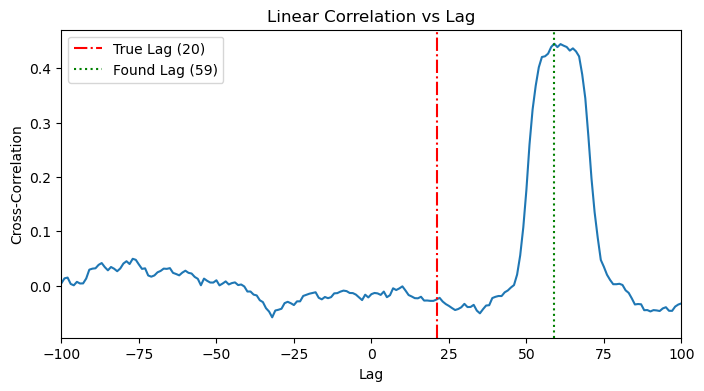

../_images/tutorials_03_Finding_Temporal_Relationships_29_1.png

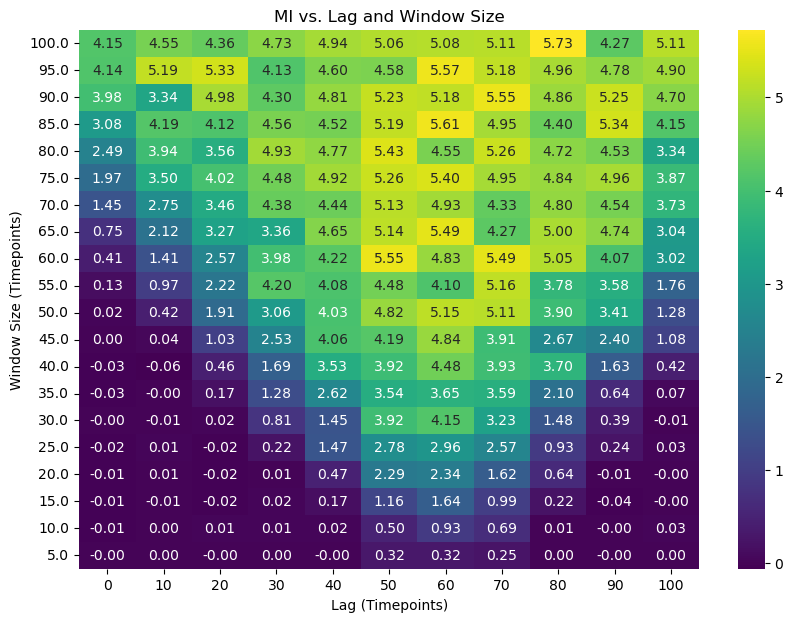

4.3 Using the Automated Topological Analysis

The function requires several parameters:

  • results_df: Your DataFrame with ‘lag’, ‘window_size’, and ‘mi’ columns

  • absolute_mi_threshold: The MI value threshold for defining the “Significant MI Contour” (default: 0.2)

  • contour_rise_fraction: Heuristic for detecting where MI begins to rise at lag=0 (default: 0.1)

  • radius_multiplier: Controls the size of the Parsimonious Circle (default: 1.2)

  • true_lag (optional): If known, the ground-truth lag value to visualize

  • history_duration (optional): If known, the ground-truth window/history duration to visualize

The Analysis Pipeline

The function performs three key analyses:

  1. Causal Contour Analysis: Examines the MI values at lag=0 to find where information first rises above the noise floor. This identifies a critical value C, representing the Causal Contour line defined by lag + window = C. This contour represents the theoretical boundary where the window becomes large enough to capture the causal relationship.

  2. Significant MI Contour: Identifies the boundary in parameter space where MI equals your specified threshold. This contour delineates the region where the interaction produces meaningful, statistically significant mutual information.

  3. Parsimony Analysis: Computes the shortest “bridge” connecting the Causal Contour to the Significant MI Contour. This bridge represents the minimum parameter configuration that achieves both causal sufficiency and significant information. The midpoint of this bridge is the Parsimonious Center - the most efficient point in parameter space that balances theoretical necessity with empirical significance.

Console Output

The function prints detailed diagnostics:

  • The estimated value of C from the Causal Contour analysis

  • The coordinates of the bridge endpoints on both contours

  • The bridge length (distance between contours)

  • The Parsimonious Center coordinates (lag, window)

  • The Parsimonious Circle radius

  • If provided, the true parameter values for comparison

The Resulting Visualization

The plot provides a rich, multi-layered view of the parameter space:

  • The Viridis Heatmap: Shows the complete information landscape across all tested lag and window combinations. Brighter colors indicate higher mutual information.

  • The Red Contour Line: Traces the boundary of the “Significant MI Contour” where MI equals your threshold. Everything inside this contour represents parameter configurations that achieve your desired level of information capture.

  • The Cyan Dashed Line: The “Causal Contour” showing where lag + window = C. This line represents the theoretical minimum window size needed to capture the causal relationship at each lag. Points below this line are theoretically insufficient; points above may be redundant.

  • The Orange Bridge Line: Visualizes the shortest connection between the two contours. This is the path of maximum parsimony - the most direct route from theoretical sufficiency to practical significance.

  • The White Dotted Circle: The “Parsimonious Region” centered at the bridge’s midpoint. This circle highlights the optimal neighborhood in parameter space. The radius is controlled by radius_multiplier: at 1.0, the circle exactly touches both contours; at 1.2, it extends 20% beyond to show surrounding context.

  • The White ‘+’ Marker: Marks the Parsimonious Center - your best single point estimate for optimal parameters. This point represents the sweet spot where you achieve significant MI with minimal parameter complexity.

  • The Lime Rectangle (if true parameters provided): Shows the ground-truth parameter box, allowing you to validate whether your parsimonious estimate successfully recovered the true underlying dynamics.

[17]:

analyze_mi_heatmap(results_df_2d, absolute_mi_threshold=1, contour_rise_fraction=0.05, radius_multiplier=10, true_lag=TRUE_LAG_FULL, history_duration=HISTORY_DURATION_FULL)

--- Causal Contour Analysis ---
MI at lag=0 rises at window_size = 60.0 (implies lag_true + history_true ≈ 60.0)

--- Parsimony Analysis (Significant MI > 1) ---
Shortest bridge is between [30. 30.] on Causal Contour
and [30.         32.01088479] on Significant MI Contour.
Bridge length: 2.01
Parsimonious Center: (lag=30.0, window=31.0)
Parsimonious Radius: 10.05

--- True Parameters ---
True lag: 30, True history: 20

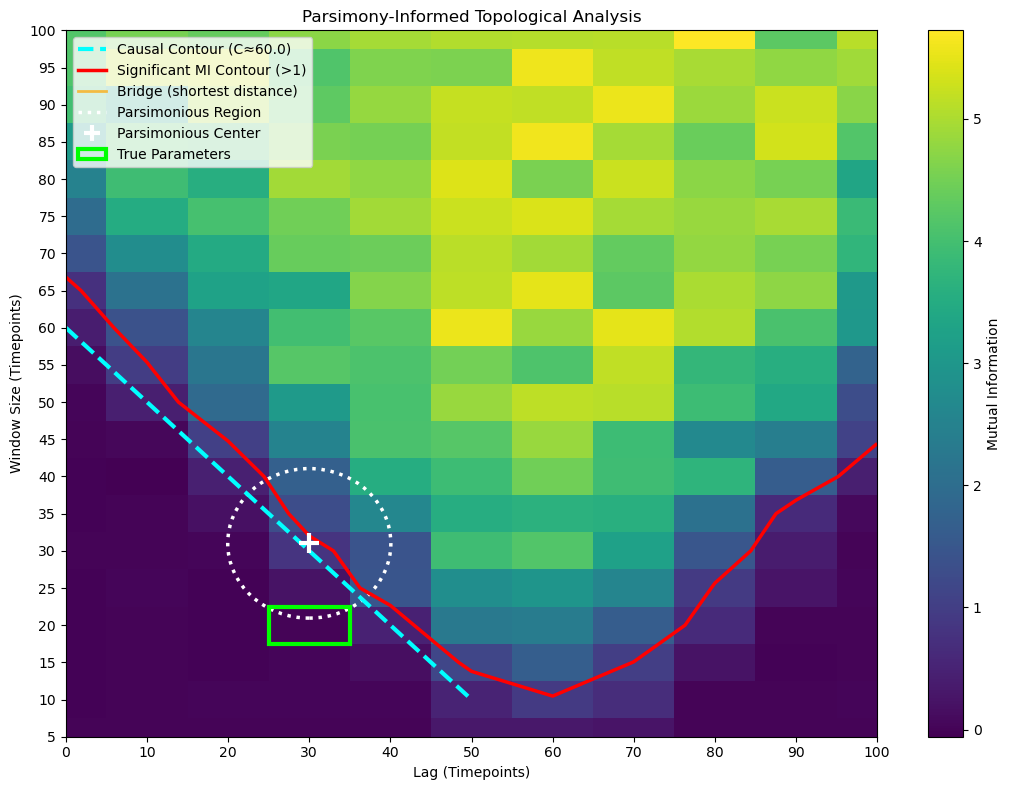

../_images/tutorials_03_Finding_Temporal_Relationships_35_1.png

Lesson: The 2D MI search is a robust and agnostic tool for characterizing the temporal dynamics between two signals.

Conclusion: Your New Workflow

You now have a complete, principled workflow for analyzing temporal dynamics in your data:

  1. Start Simple: If you suspect a linear relationship, start with cross-correlation. It’s fast and easy.

  2. Go Nonlinear: For more complex data, use the neural_mi library, starting with simple 1D sweeps for lag or window_size if you have a strong prior.

  3. Perform the 2D Search: When you need to find both the timing and the timescale of an interaction from an agnostic perspective, the 2D heatmap is the way to go.

A Note on Model Choice

In this tutorial, we used a simple MLP model. You might have noticed that using a more complex CNN, or different critic structures, doesn’t significantly change the results for these specific examples. This is expected.

The data we generated was based on a moving average, which is a smoothing operation. The key information is in the mean value of the window, not in any complex internal pattern. An MLP is perfectly capable of learning this simple relationship.

When should you use a more complex model?

  • CNN: Choose a CNN if you hypothesize that the relationship depends on a specific local pattern or shape within the window (e.g., a spike followed by a trough).

  • RNN: Choose a recurrent model like an LSTM or GRU if you hypothesize a dependency on the sequential order of events within the window.

The takeaway is to start with the simplest model that can capture your hypothesized relationship. For many neuroscience applications involving rate-coded or smoothed data, an MLP is a powerful and efficient choice.
